Product model overview
| Heat exchanger | Titanium tube / titanium coil |
|---|---|

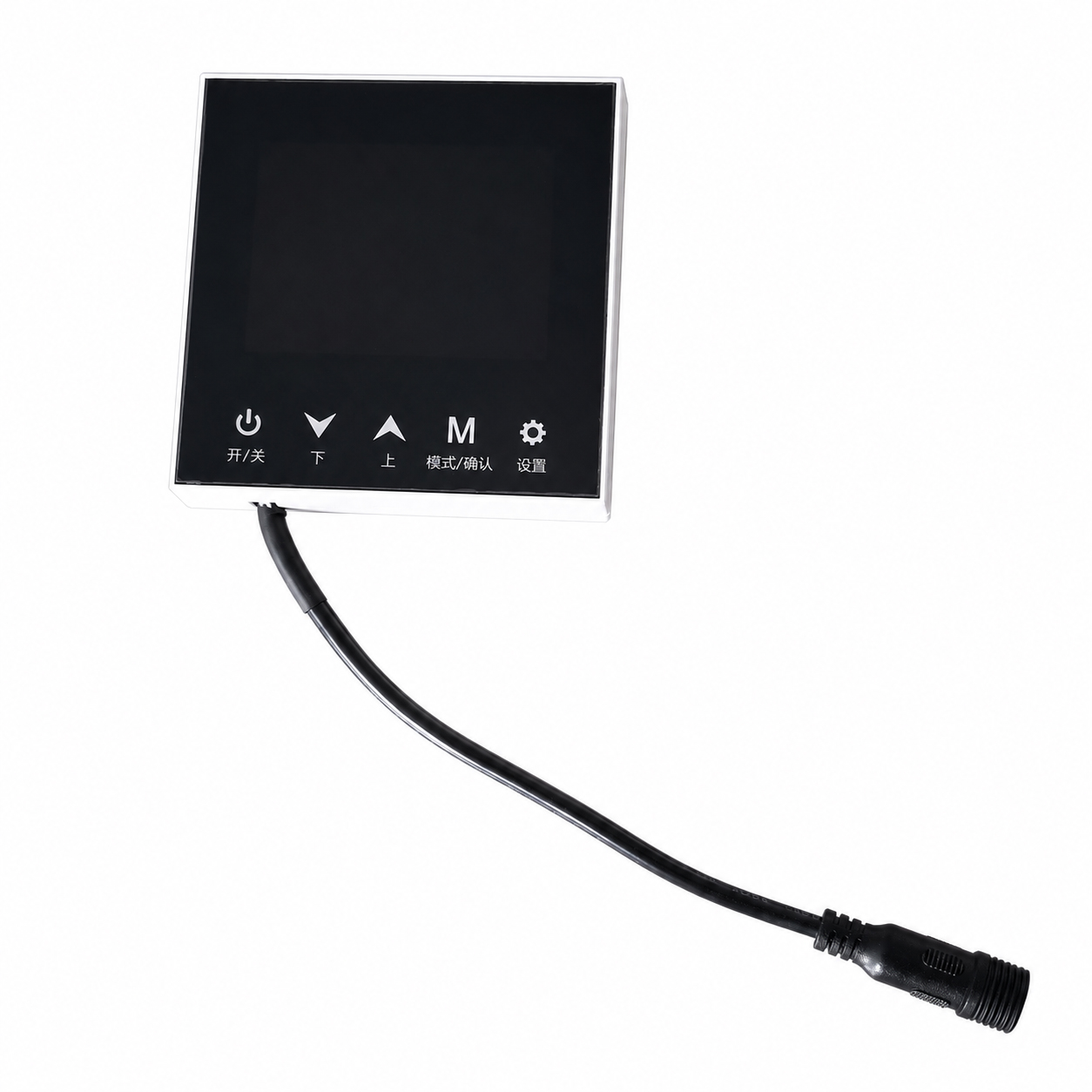

| Control | Inverter compressor with digital temperature controller |
| Refrigerant | R410A / R32 subject to model and market |
| Power supply | 220-240 V or 380-415 V, 50/60 Hz |
| Protection | High/low pressure, overload, flow and temperature protection |
| Configuration | Air-cooled or project-specific water-cooled option |
Product introduction
The 3HP seafood tank chiller is designed for larger live seafood systems in Singapore, Hong Kong and Malaysia, including hotel displays, wholesale holding tanks and multi-tank seafood market circulation. It provides the highest cooling capacity in this three-model selection guide.
Recommended tank water volume
| Target water temperature | Reference water volume |
|---|---|
| 23°C | ≤3800L |
| 18°C | ≤3500L |
| 15°C | ≤3200L |
| 12°C | ≤2900L |
| 8°C | ≤2600L |
| 5°C | ≤2200L |
| 1°C | ≤1800L |
3HP model specification
| Cooling capacity | 7000-8500W |
|---|---|
| Heating capacity | 7500-9000W |
| Rated voltage | 220V / 50Hz |
| Ambient temperature | -25°C to 55°C |
| Pipe connection | 32-50mm by project confirmation |
| Net weight | 39kg |
| Temperature range | 3°-40°C |
| Recommended water volume | 300-3000L standard reference |
| Product size | 700×650×550mm |
| Controller cable | Standard 10m cable |
Regional keyword fit
This model is positioned for searches such as 3HP seafood tank chiller Singapore, Hong Kong hotel live seafood tank chiller and Malaysia seafood wholesale tank chiller.
Product visual guide

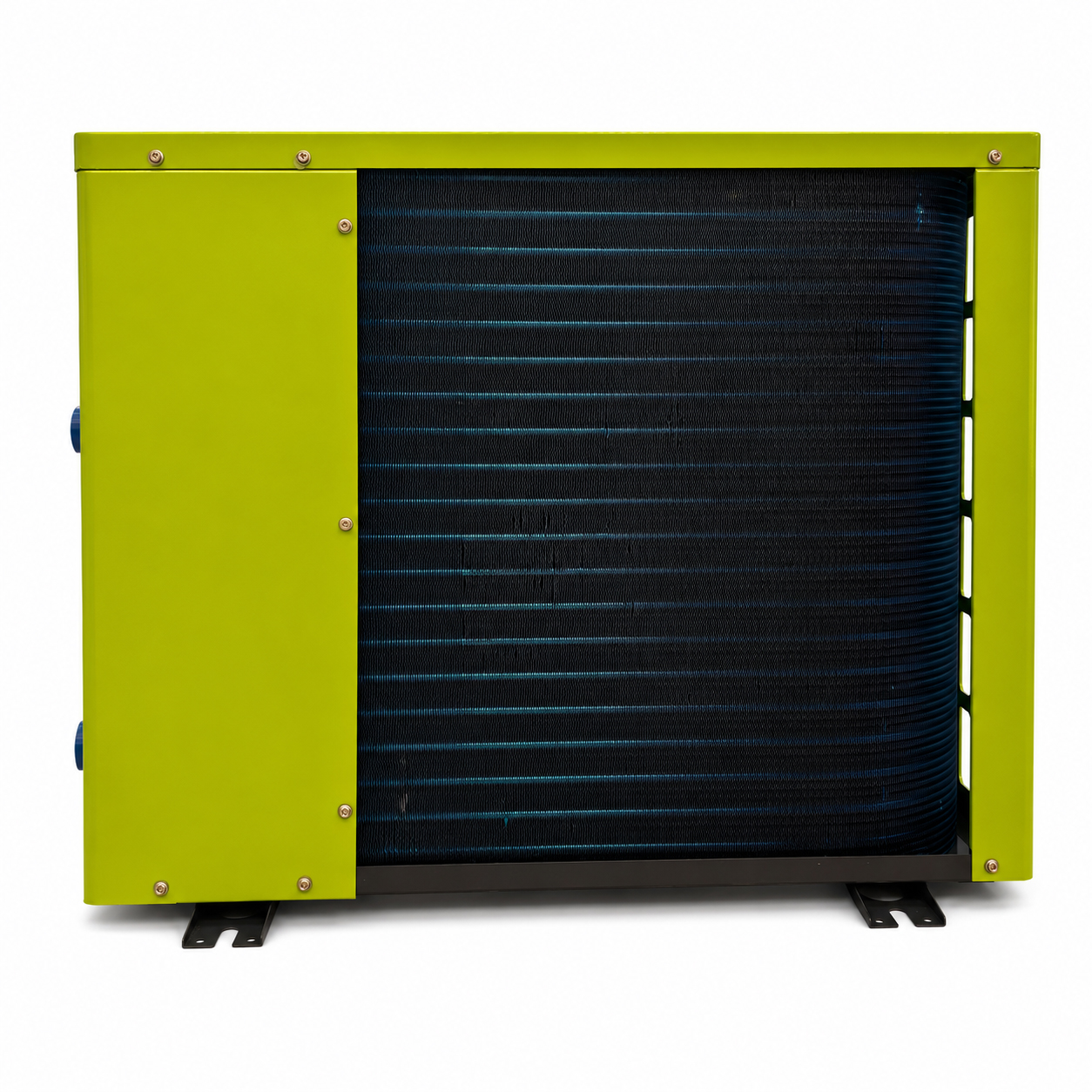

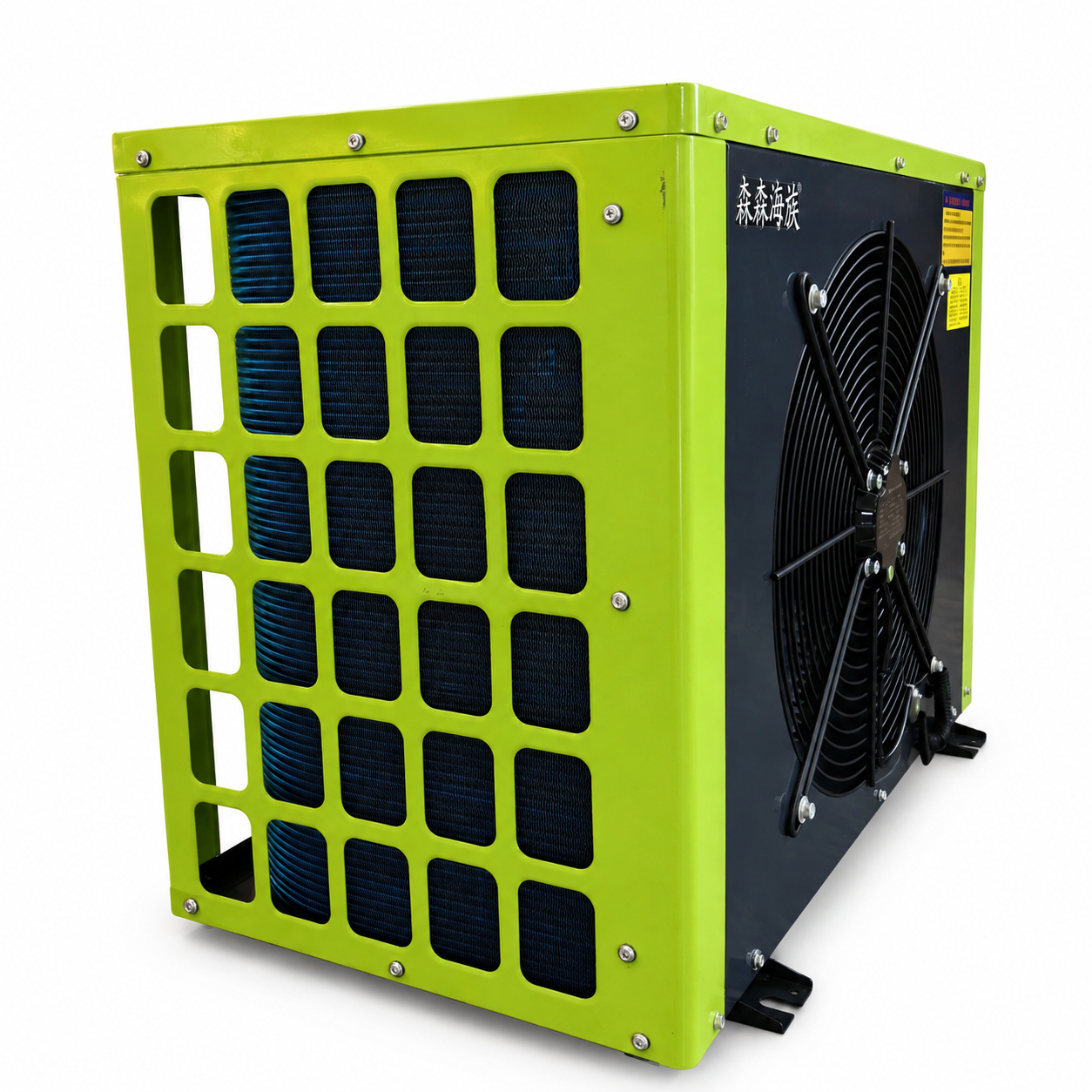

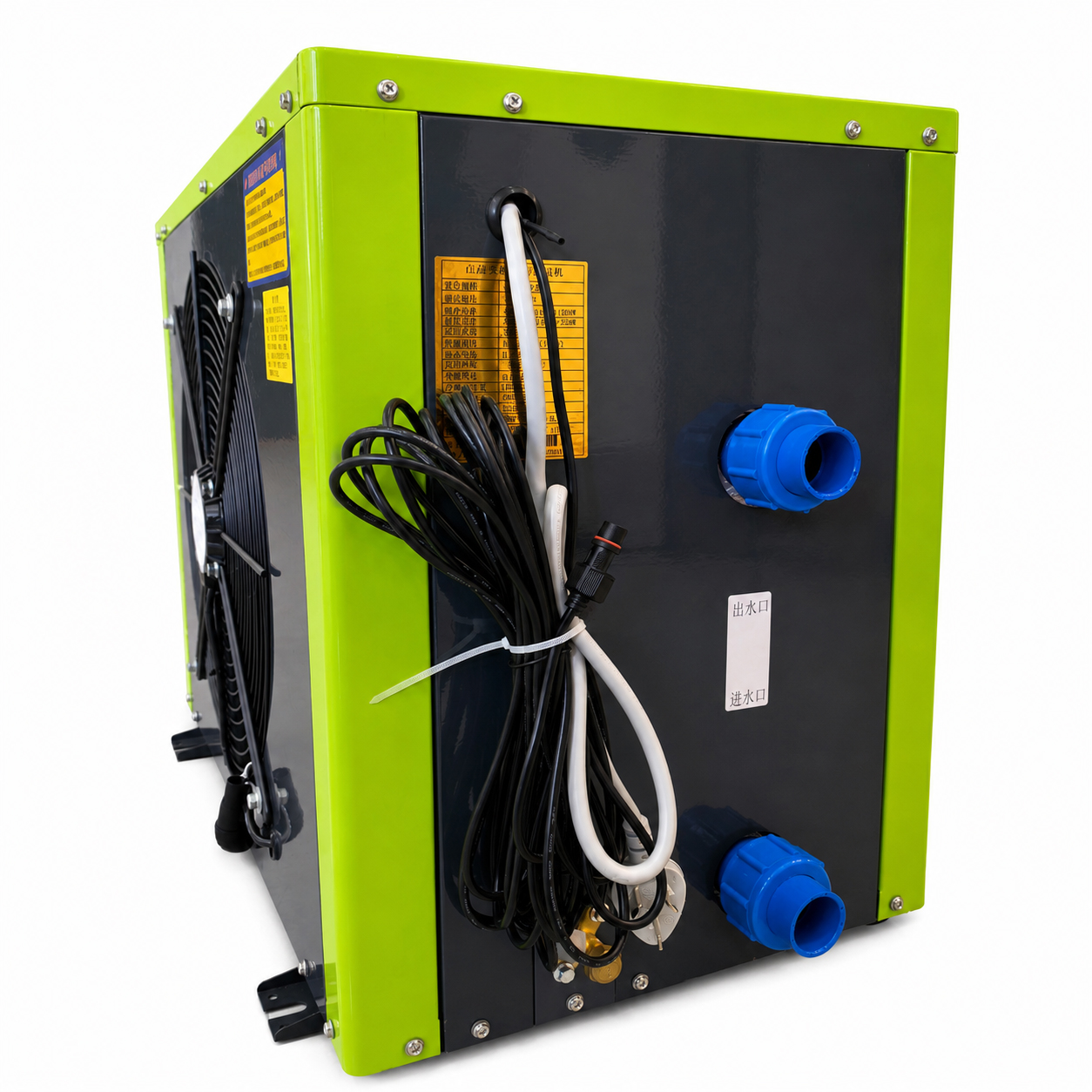

Product detail images
Application scenarios
Seafood Market Stalls
Seafood RestaurantsHotel Live Seafood Tanks
Supermarket Seafood Areas
Aquaculture FarmsLive Fish Holding SystemsInverter energy-saving control
The inverter compressor adjusts output according to the real tank load, so the chiller does not repeatedly start and stop at full power. For seafood markets, restaurants and hotel live tanks in Singapore, Hong Kong and Malaysia, this helps reduce electricity use, keeps water temperature steadier and lowers stress on lobster, crab, grouper and other live seafood.
Core advantages
Stable Temperature Control
Precision inverter control reduces temperature fluctuation.
Titanium Heat Exchanger
Saltwater-compatible titanium water-side components.
30%+ Energy Saving
Variable-speed output follows the actual cooling load.
Saltwater Corrosion Resistant
Built for demanding marine environments.
Low Noise Operation
Comfortable for restaurants, hotels and retail areas.
Custom Tank Solution
Capacity, piping and controls matched to your system.
Factory strength and quality control
The chiller is built for seafood tanks that run long hours in humid, saltwater environments. Cabinet assembly, refrigeration circuit matching, wiring inspection, water-side checks and temperature testing are controlled before shipment so the equipment can be selected and installed with confidence.
- Refrigeration circuit matching
- Titanium water-side inspection
- Electrical wiring check
- Temperature pull-down test
- Packing and delivery review
Customer questions
Can this chiller be used with seawater?
Yes. The water-side heat exchanger is configured in titanium for saltwater corrosion resistance.
What information is needed for model selection?
Please send tank volume, target temperature, ambient temperature, water type, seafood species, power supply and photos or a piping sketch.
How does inverter control save electricity?
After the tank reaches the target temperature, the compressor can reduce output instead of repeating full-power start-stop cycles.
Can you support Singapore, Hong Kong and Malaysia projects?
Yes. We prepare model recommendations around local ambient temperature, water volume, tank layout and service access.
Customer feedback
The water temperature is more stable during peak trading hours, and the inverter operation is quieter than the old fixed-speed unit.
The lobster and crab tanks hold temperature better after dinner stock loading, and the titanium water side gives us more confidence with seawater.
The model recommendation matched our tank volume, and daily operation is easier to monitor.
